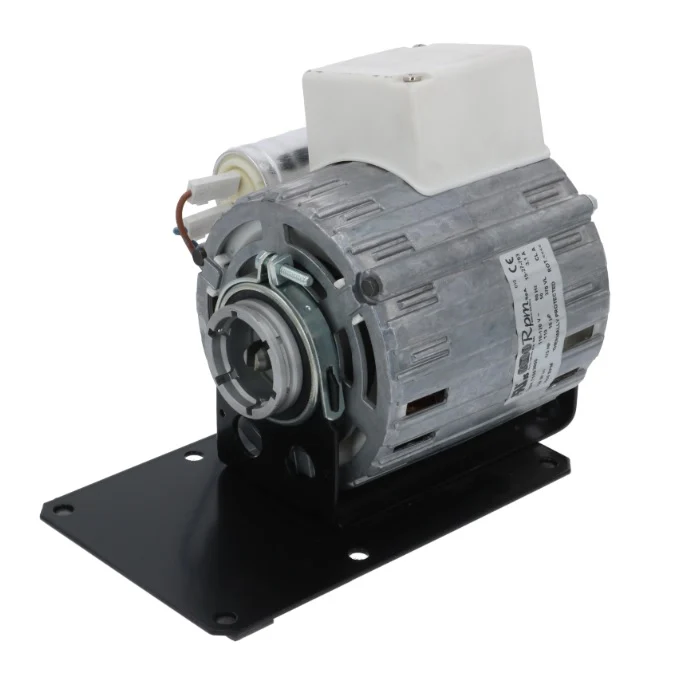

RPM spa Rotary Vane Pump Motor – Standard 110V Motor

This Espresso Machine pump motor is the most common rotary vane pump motor model available. This clamp flange rotary pump motor is the 110V version, however it is available in this 230V model as well. Dimensions: 7 L x 7 W x 7.5 inches tall. In many cases, older espresso machine equipment will have the rotary vane pump motor mounted outside of the espresso machine, whereas with most newer equipment the motor will be mounted on the inside. Model 11053600 165W 110/115V 50/60Hz 18µf Capacitor It has been said that: “When diagnosing motor related problems, be sure to check the capacitor before committing to a pump replacements. If the motor spins up to speed with the pump removed, especially if you give it a little spin start with a screw driver, the pump is likely fine and the capacitor (which starts the motor) is bad.”
